Optimising parameter to set width of router device at the rip saw
Applies when taking recuts at the saw using a router at the rip saw. combiTech1
- Enter a value for the Router width
The router width is used to calculate a gap between parts involving a recut.
The gap is calculated as:-
Maximum of ('router width'/2 OR 'saw blade thickness') + 'allowance'
The 'allowance' is set by the Optimising parameter: Additional allowance for gap between recut parts

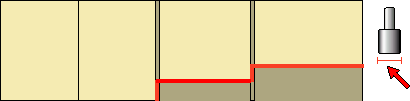

A router typically leaves rounded corners so a gap is necessary between all the parts involved in a recut to allow for this.
Example:-
Router width = 10.0 mm
Saw blade thickness = 4.8 mm
Gap between parts (without allowance) = 10.0/2 = 5.0 mm
| For combiTech1 see: See: Other recut devices |
|
