Optimising parameter to add an extra value to the gap between parts
Applies when taking recuts at the saw using a router at the rip saw.
This parameter adds an extra amount to the gap left between parts by the operation of the optimising parameter: Width of router for recuts
- Enter a value for the allowance
For combiTech1 see: See: Other recut devices |
Notes

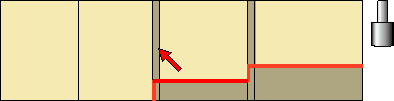

The total gap between parts involving a recut is:-
Maximum of ('router width'/2 OR 'saw kerf') + 'allowance'
The allowance is sometimes needed to compensate for small variations in the material or in the measurement system or to allow for inaccuracies caused by clamping.
Example:-
Router width = 10.0 mm
Saw blade thickness = 4.8 mm
Gap between parts = (10.0/2) = 5.0 mm
Additional allowance = 2.0 mm
Total gap between parts = 7.0 mm
|
