Board variables globally for all programs



Nesting parameter to set how variables are used

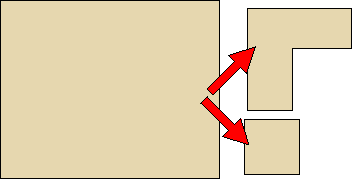

The values set for the variables at the board level can be used for each occurence of the variable throughout the programs for each workpiece.



Check the box to allow this operation



tickbox9.gif Board variables globally for all programs



Notes



- Can also be set as a material parameter at both board and material level
