Offcut direction



Nesting parameter to set how offcuts are created on a pattern






This indicates how offcuts are placed in a board.



Combo-button.gif Select the direction from the list



Across board width

Along board length

Either direction

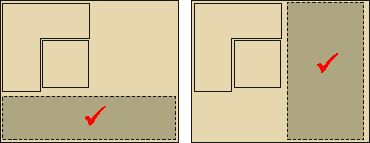

Across the width of the board



Offcuts are generated across the width of the board



Along board length



Offcuts are generated along the length of the board



In Either direction



The offcut arrangement with the largest area is selected whether it is across the board width, along the board length or a combination of the two.





Notes



- Can also be set as a Material parameter at material level.



- Does not apply for Rectangular Nesting optimiser
