Nesting system parameter to define the origin for an external file
When patterns are transferred to a machining centre the program also generates an external file in CSV (comma separated values) format.

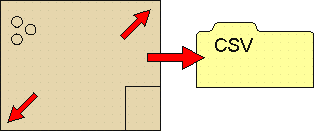

This file contains the positions of the parts / offcuts on the nested patterns. These positions are normally defined from the bottom left corner but there is an alternative layout.
The options are:-
Bottom left
Top right
Select an option with the radio buttons.
|
