Minimum Board dimensions for saw



Saw parameter to set the limits for board length and width when loading on to the saw




- Enter a value for the minimum board dimensions in the Length and Width



Set these values to restrict which boards can be rotated and which boards can contain a head cut and to not use boards that are too small (for example offcuts)

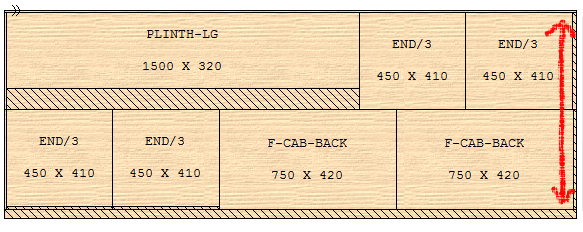

In the above example the optimiser does not create a pattern for the board in a rotated orientation because with this narrow board the board length would then be too small (where the minimum board length is set, for example, to 1000mm).





Notes



- If patterns are created (using pattern amendment) which violate this parameter an error is reported



- Can also be set as a Material parameter at both board and material level.
