Nested patterns - edit properties



Nested patterns - edit option



At a nested pattern it is sometimes useful to make changes to part information, for example, at the Information boxes. At a Nested pattern:-



Mouse2.gif Double click on the pattern to move to the Pattern Editor

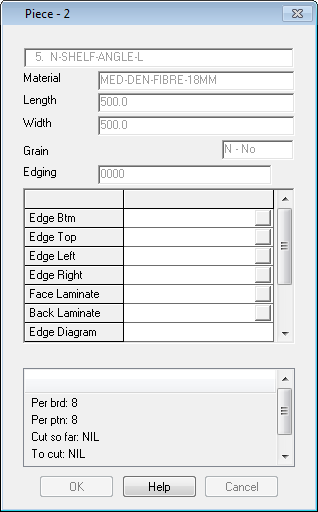

 At the Pattern editor click on any part to view the part properties.






 Click on any other part to see the details for that part

properties-icon.gif Click on the Toolbar icon (Properties) to hide the properties box



Information boxes



If information boxes are in use the contents can be edited from this dialog.



 Click on the box to edit the contents

 Select OK to confirm changes.





Notes



- Only for Nested drawings and Nesting previews based on the Machining library pattern format

- Not available for patterns based on the MPR(X) pattern format



- If changes are pending it is not possible to move off the current part and select other parts



- The part properties are also available (at the pattern editor) from:-



Select the Part properties button on the right hand side toolbar

Select Part properties on the Edit menu



- In some cases a change to information boxes (e.g. global step angle) can affect the validity of the current pattern. If so the changes should alternatively be made at the part list and the patterns regenerated.
