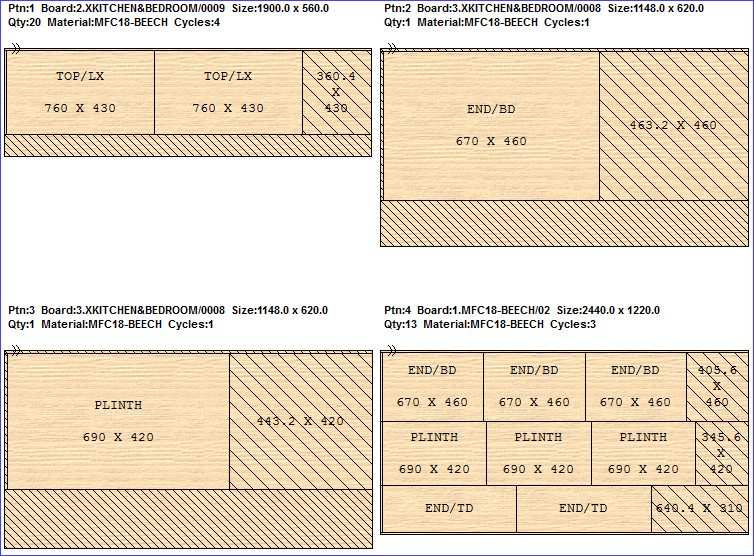

Optimising parameter to set how patterns using offcut boards are positioned in the run
Patterns are sorted by material so any patterns using offcuts are either first for each material, last for each material, or remain in board order. Use this parameter to choose the position of patterns for offcuts. The options are:-
Board list sequence
First per material
Last per material
First in run
Last in run
select the offcut sequence from
the list
Notes
- Affects the order of patterns produced by the optimiser. If the patterns are changed or re-sequenced later this parameter is not followed.
- ‘First’ and ‘Last’ options do not apply when open parts are restricted and the board loading sequence is overridden.
- First / Last in run sorts all offcuts (for all materials) to the start or end of a run. The sequence of offcut patterns is by material and in the same order as the non-offcut patterns.
|
