System parameter to set the naming rules for divided part lists
Where part lists / cutting lists are divided the new lists produced can be named in different styles. The options are:-
Use sequential run number
Use cutting list name as root
Use category name
Select an option with the radio buttons
The sequential number is simply an increasing number e.g. 10081, 10082, 10083 etc.

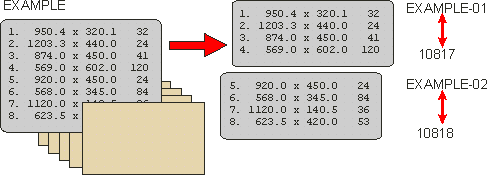

The cutting list name bases the new names on the original cutting list name. For example, if the original name is EXAMPLE2 the new lists are named EXAMPLE2-01, EXAMPLE2-02, EXAMPLE3-03 etc.
The category name is the value of the field set for the category. For example, if the category is MATERIAL then each list is divided into lists of different material types and lists are named with the material names. e.g. MDF18, TEAK15, BEECH01 etc.
The category name option is only available if a category is chosen for the divide.
![]() |
