Part list properties - DXF import layer name rules



Part list property to specify the drawing settings to use



If the part list property Drawing source is set for 'DXF files' this option is available to enter the name of the list to use with the part list.



- Make sure the Machining centre parameter: Import - DXF format is set to 'Layered - user defined'

- Move to a part list

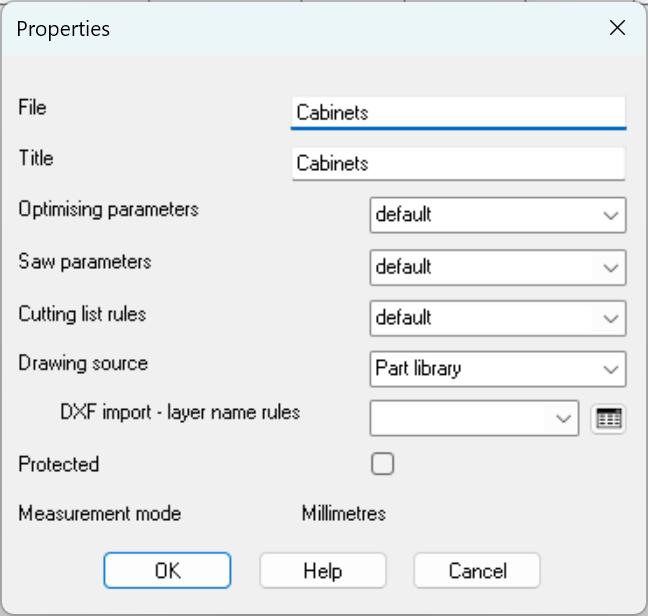

At the part list screen:-



 Select: File - Properties

 Set the property 'Drawing source' to: DXF files



 Enter the name of the list to use (if any)

or

Combo-button.gif Use the list option to select a file name






 Select OK to confirm.



This option is only available if 'Drawing source' is set to 'DXF files' and the Machining centre parameter: Import - DXF format is set to 'Layered - user defined'. It is only when user defined layers are required that the DXF import parameters are used.



Note



- Only R12 format DXF files can be used by the program
