Length of middle bridge



Saw parameter to set how a notch is positioned for a tension trim




Applies to Cadmatic 4

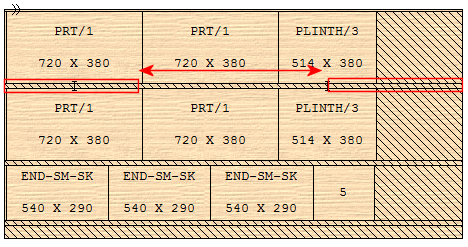

For notch type tension trims enter the length of the bridge between the notches. The value is a percentage of the overall the board dimension (in the direction of  the tension trim).



- Enter a  value (as a percentage)



For example: 70





Notes



- Can also be set as a material parameter at both board and material level



- This parameter is only enabled when the relevant tension trim type has been selected.
