Board properties - nesting



Option to view or change board details at the pattern editor (nested patterns)



At the edit screen for a nested pattern:-



 Select: File - Board properties

or

boardproperties-icon.gif Select the Toolbar option

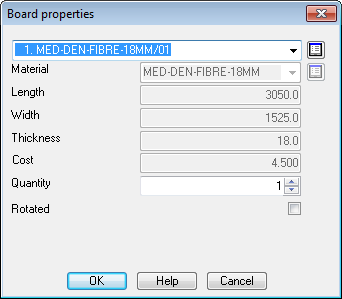

The program displays the Board properties.






Shows the basic board information; Board code, Material, Length and width ... The choice of board, board quantity and whether the board is rotated can be changed manually if required.





Notes



- Changing the board or quantity may alter the optimisation result significantly. The edit options can be useful for small changes, such as using a larger board in an emergency or choosing a similar board and material but with a different grade  of material.



- Items that cannot be changed are greyed out
