Option at Import to change file names
At 'Import parts' the names of the incoming file and parameter lists can be changed manually. At the main screen:-
● Select: File - Import parts
or
● Select a file from the Import - parts branch of the File tree
● Select a part list to import

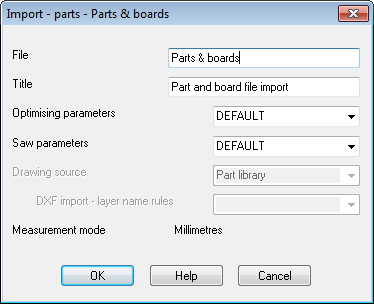

The program offers a dialog to change file names.
(This dialog is only available if the Import parameter: Import file name dialog is checked)
- Enter or change the required values.
For example, a part list of that name may already exist or it may be useful to alter the title to indicate that the part list is imported.
Options
OK - confirm changes and continue with import
Help - more information about this dialog
Cancel - abandon import
