Board dimensions (nesting)



Nesting parameter to set the minimum and maximum board size






These values determine which orientations of a board are valid for nesting runs. Board dimensions must be greater than or equal to the minimum length/width parameters and less than or equal to the maximum length/width parameters.



At the main screen:-



 Select: Parameters - Nesting parameters



- Move to the first tab.



The values to set are:-

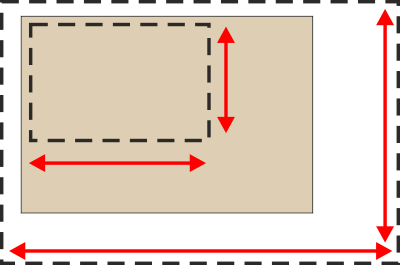

Minimum board length

Maximum board length

Minimum board width

Maximum board width



- Enter the values required.



The Board orientation determines how the values are applied. For example;-



Board orientation = lengthways

Board length = 3660

Board width  = 1830



Parameter values set.



Maximum length = 2000

Maximum width  = 4000



In this case the board does not fit on the nesting table in a lengthways orientation. If the Board orientation was 'Either way' then the board would fit widthways.





Notes



- For rectangular nesting if the parameter values for 'Depth of nesting table: Pre-cut width of board' are set the pre-cut minimum and maximum width of the board must be valid for the size of nesting table.
