Set up for labels for MPR(X) nested patterns
When the system parameter: Use project manager is set the program uses the WoodWop software to generate labels on MPR(X) based patterns. Where this parameter is NOT set labels can still be generated using the program options.
In this case make sure to set up the following parameters.

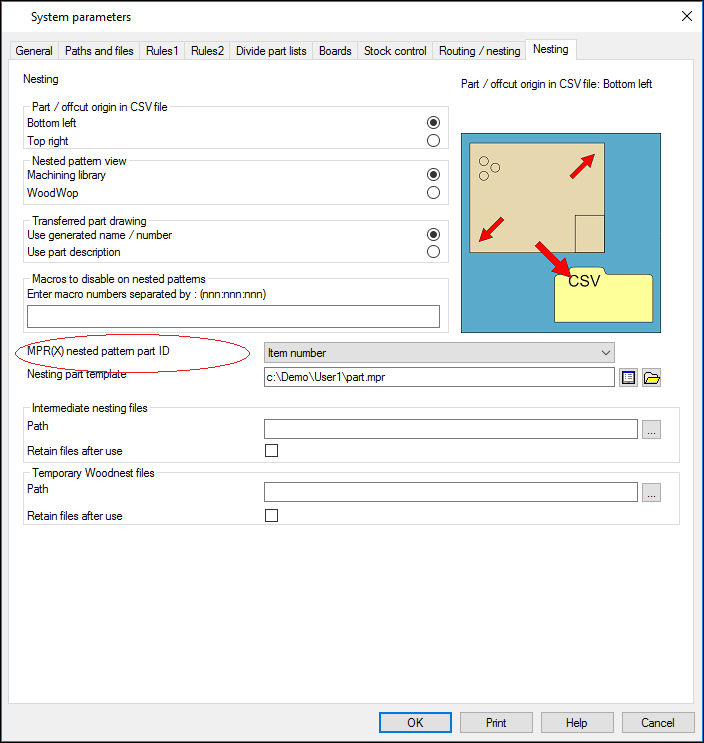

System parameters - Nesting - MPR(X) nested pattern part ID
Also set the Nesting parameters to describe the label format.

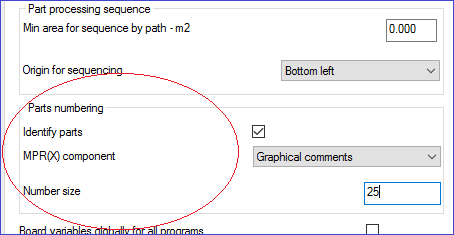

Nesting parameters - Nesting 3
Identify parts
(must be checked)
