Optimising parameter for minimum measurement for the space between recut parts (Recuts tab) and the minimum front trim for each recut.
Applies to combiTec only

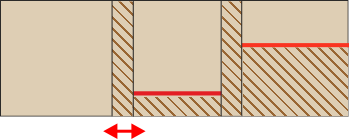

Where recuts have a different width there has to be a gap between the recuts to allow for the movement of the saw blade. This value sets the minimum the gap can be, for example, 75mm.
The gap is a calculation based on the maximum book height and if this results in a value less than the minimum value the value is set to the minimum value.
Front recut trim
combiTec recuts also require a minimum front trim set by this value. There are no rear recut trims for combiTec recuts
Example
Gap between recut parts of different width = 0.6
Minimum gap between recut parts of different width = 75
Maximum book height = 100mm
Therefore the gap between recut parts is set as the maximum of 60mm and 75 mm
| For combiTec see: combiTec |
|
