Saw transfer to DXF



Send cutting patterns to DXF format drawing/graphics file(s)



The program can be set up to transfer data via the DXF format.



Saw

Transfer mode

DXF transfer

16



At the main screen:-



 Select: Machine Interface

 Select the transfer option: 16 - DXF

 Select: Transfer to saw

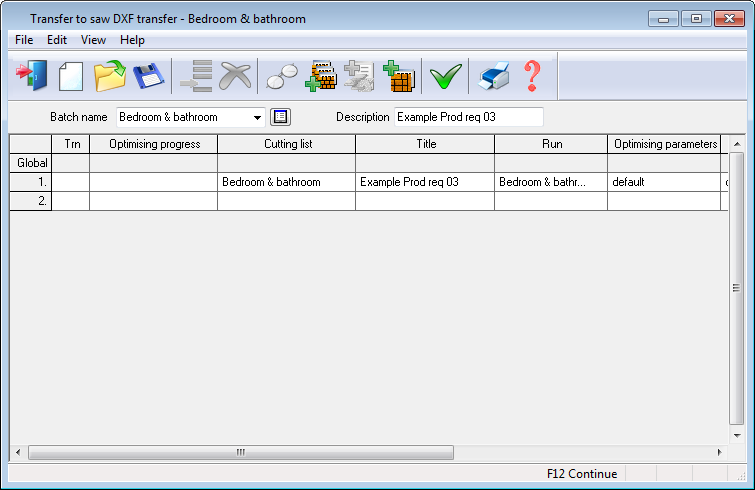

The program displays the batch screen showing the runs to be transferred






continue-tick.gifSelect the 'continue' marker

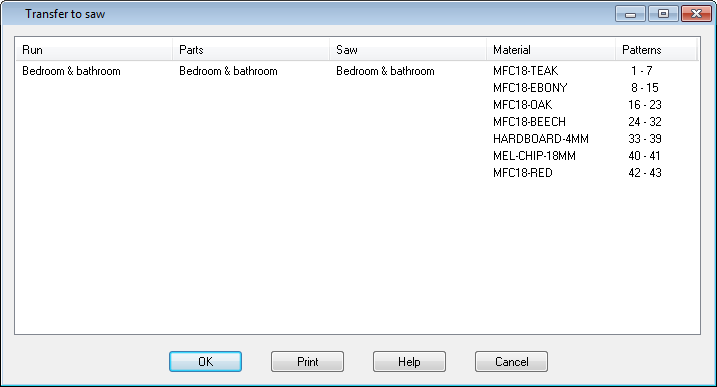

The program shows the specific details for each transfer and goes through the options required. This can vary for different types of saw controller.






 Select OK to confirm transfer



(This dialog can be turned off - see: Saw transfer parameters)



The information shown:-



Run number

Part list name

Name of file transferred to saw

Material code

Range of pattern numbers covered by file



The program creates a set of DXF files.
