Setup - DXF saw transfer



Saw transfer parameters and other settings for sending saw data to DXF files



At the main screen:-

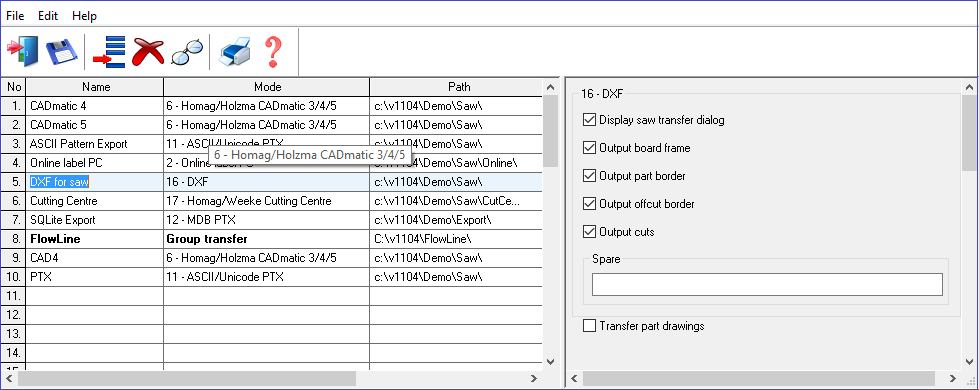

 Select: Parameters - Saw Transfer parameters

 Move to a blank row

 Add a record (one line) for the transfer



Give the transfer a suitable name e.g. 'DXF transfer' - this appears on the Saw Interface menu at the main screen






Within the saw transfer line set:-



Path - location to store export file

Mode - 16 DXF



At the right hand side of the row are a set of extra parameters that also need to be checked and the values changed if necessary.



The files are named based on the pattern file with a pattern number (padded with '0' to make a 4 digit number).



Bedroom & bathroom0001.dxf

Bedroom & bathroom0002.dxf
