Properties - Polygon

Details of each drawing element

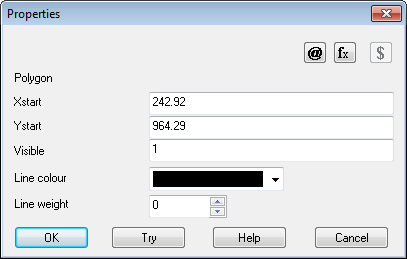

Each drawing item has a set of properties such as position, length, and colour. These can be used to check the object details and to set accurate sizes of each part of the object. At the Drawing library:-

Select object (or use the 'Select' tool)

●  Select: Edit - Properties

or

Select the Toolbar option

or

Right click Properties

Xstart, Ystart - coordinates of first point

Visible - visible (1), not visible (0)

Line colour - colour of line

Line weight - line thickness

@ fx $ - Use these buttons to select formula, variable or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with symbol: =

Try - select this to refresh the drawing

Status line - the status line at the bottom of the dialog shows the details of the current property
