Parameters - Part library



Settings to control the operation of part library



At the part library screen:-

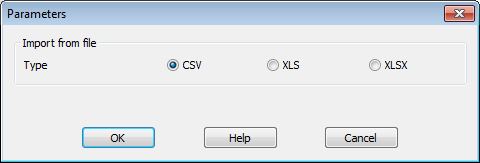

 Select: File - Parameters






 Select the file format of the external file.



The options are:-



CSV (ASCII text file, comma separated values)

XLS (Excel format)

XLXS (Excel format)



Order of fields



The order of fields (for all formats) is:-



part code

material

description

default length

length

default width

width

grain

quick edge codes

cost

drawing type

drawing code

information boxes

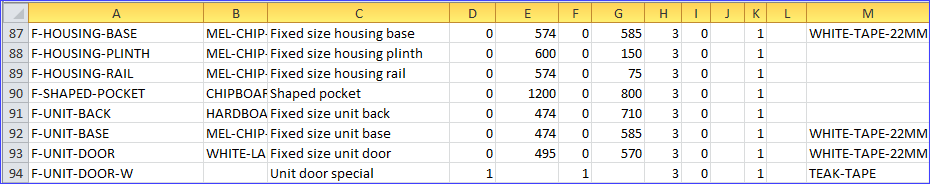

Example of external file (XLS)






Details for fields



Default length?; default width? - used to set the default check box beside the length and width fields at the part library



0 = default box is not set

1 = default box is set



Material code starts with + record is a fitting

Material code starts with - record is an operation



Grain 0=No, 1=Yes, 2=X, 3=Variable

Cost - only applies to fittings and operations



Drawing type - 0=file name, 1=machining library, 2=drawing library



Drawing code - where the drawing type is 0 the drawing code is a file name and extension, otherwise it is a drawing code



Examples for drawing codes for drawing type = 0



F-UNIT-DOOR-W.MPR



ANOTHER.WMF

LASTONE.EMF



Examples for drawing codes for drawing type = 1, 2



F-UNIT-DOOR

CARCASE 2

END/3
