Customise the content of the menus on the main screen
At the main screen or Review runs screens there is an option on the 'View' menu to customise the menus on the screen.
● Select: View - Modify menus

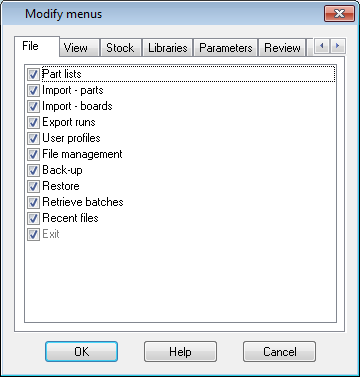

The program displays the 'Modify menus' dialog:-
Each main screen menu has a separate tab with menu items that can be selected:-
Check
/ uncheck the box to set the menu item
By default all menu items are available.
Ctrl
Hold down the control button
with the mouse to select multiple item
The order of items in the menus cannot be changed. Some menu items on each tab, for example, 'Exit' cannot be changed.
The contents of the Machine interface menu are configured via 'Saw Transfer parameters' and / or 'Machining centre transfer parameters'. The Auxiliary menu is set via the 'Change - menu' option. In these cases the 'Modify menus' option is used to just turn on / off the full set of options.
Notes
- The items on the pop-up or 'fly out' menus cannot be changed
- If a menu item is removed any related items on the toolbars are also removed
