Pattern order



Nesting parameter to set the type of sort for patterns



Nested patterns can be sorted by several different criteria. Use this parameter to set the type of sort required.



- Patterns are always grouped by Material (this cannot be changed)



Within the material grouping patterns can be sorted by up to 3 rules. For example, 'largest run quantity first'; 'run quantity and then board length...'



Combo-button.gif Use the list boxes to select sort criteria

up-icon.gifUse the 'direction' button to choose ascending or descending

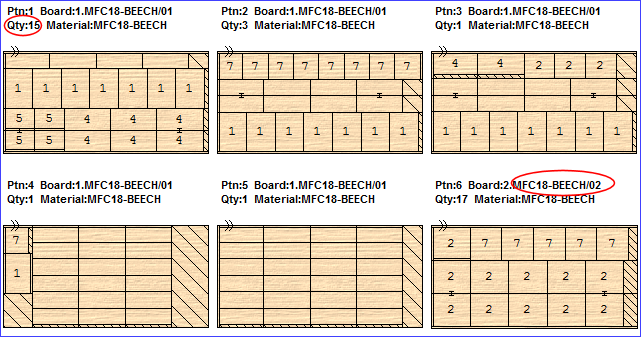

The following example shows patterns sorted by quantity and board length for a single material.








Notes



The sort options are:-



Pattern quantity

Board orientation

Board list number

Board code

Board length

Board width

Board area
