System check - Nesting / Machining



Provides a list of the files required for Nesting / Machining operations

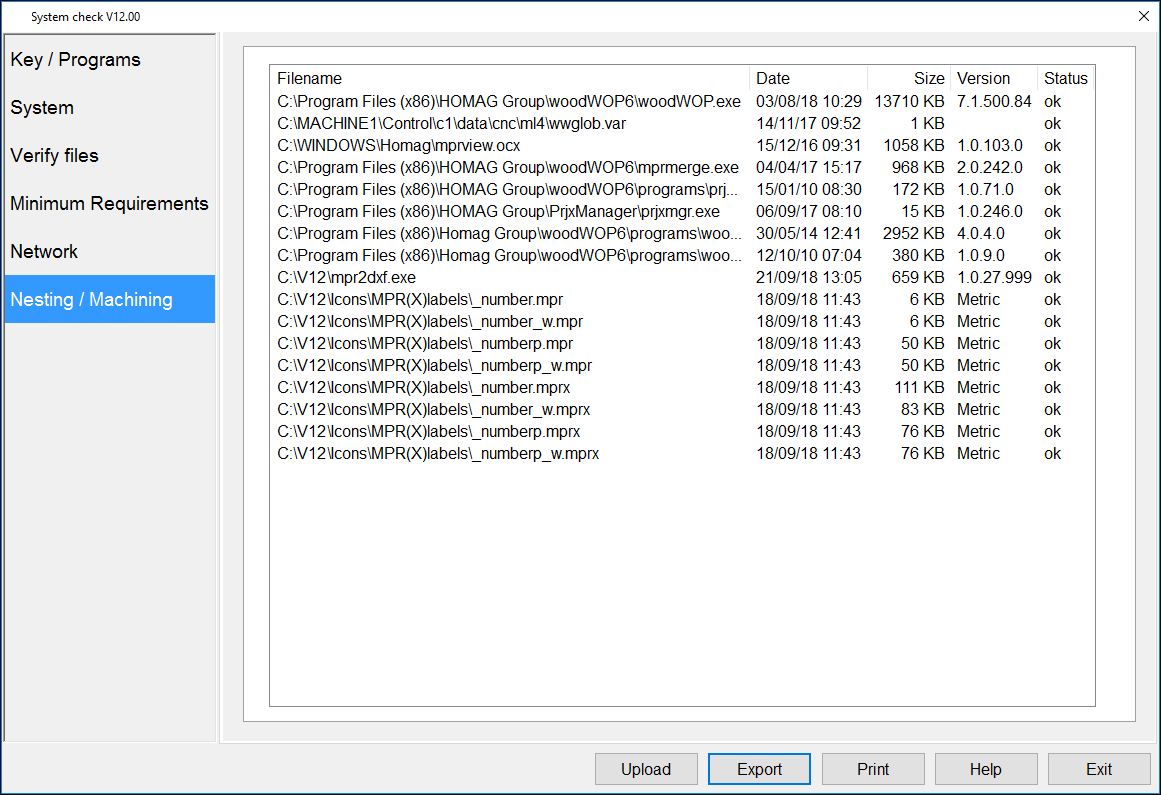

For Nesting / Machining with Woodnest a number of external files need to be available. This option lists the files required. At the System check screen:-



 Select: Nesting / Machining tab






'X' indicates the file is missing



The last 4 files are used for labels on MPR(X) parts and do not have a file version but are either metric or inches based.



The Export option can be used to extract the contents of the dialog to a text file.



The Print option is used to print out the contents of the dialog.
