Offcuts at end of cutting phase



Optimising parameter to move offcuts to the rear of a board or strip



Saw models 21, 22, 25 only

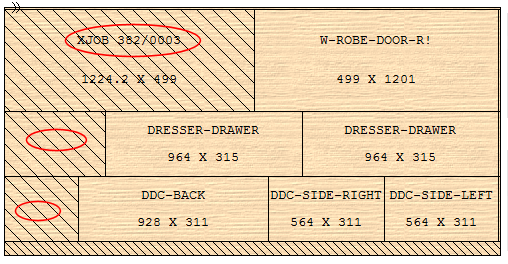

It can sometimes be useful for offcuts to be placed at the rear of a strip or board, for example, when the offcuts are going to be returned to storage.






tickbox9.gif Check the box to move offcuts



An error is reported if the saw transfer mode does not support this parameter.





Notes



- Can also be set as a material parameter at both board and material level



- If the falling waste is not large enough to be an offcut it still appears at the front of the phase.



- Offcuts at the rear do not have a separate rear trim.

- Null heads are always shown at the right of a pattern



- The following saw transfer modes support optimisations with offcuts at the rear.



CADmatic 4/5

CADmatic 3 (Recursive)

Pattern Exchange

Online PC

DXF
