Option at Pattern library to set how patterns are displayed

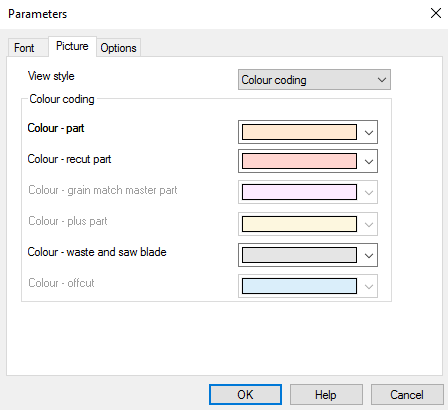

The picture style of a pattern on-screen can be customised with these settings. At the Pattern library screen:-
- Select: File - Parameters
- Select: Picture
The 'View style' has choices of:-
Monochrome (black and white)
Colour coding
For Colour coding the part, recuts, and waste can be set to different colours. Use the Colour picker boxes to set the colour. The colour picker can also be used to create custom colours.
See:-
Colour - part (pattern library)
Colour - recut part (pattern library)
Colour - waste and saw blade (pattern library)
Pattern library parameters - Overview
