Drawing source (Import parameters)



Import parameter to set the where part drawings are located

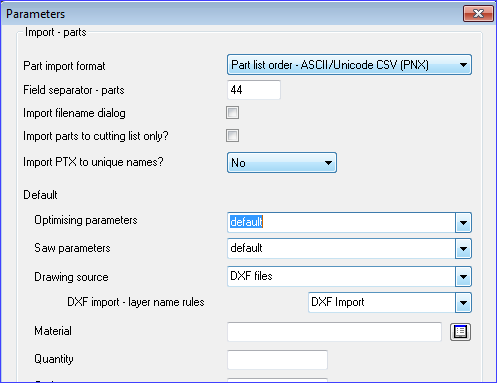

In the parameters dialog of the import program there is an additional parameter. This defines the drawing source and the DXF import layer name rules used for import



- Drawing source



Use the list box to choose the drawing source.



If the source is set to ‘DXF files’ the DXF import layer name rules can also be set.








Notes



- The drawing source / dxf name parameters in the part list parameters dialog are still used when importing part lists in the part list.
