Tab style



Nesting parameter to set the tab style






The 'Tab style' has two options of flat or Ramped.

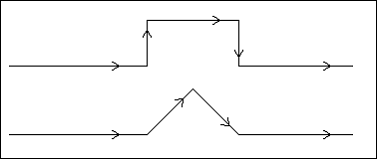

Here are examples of Flat and Ramped tabs from the side of the board.








Notes



- Can also be set as a material parameter at both board and material level
