Displays 3D image of Product

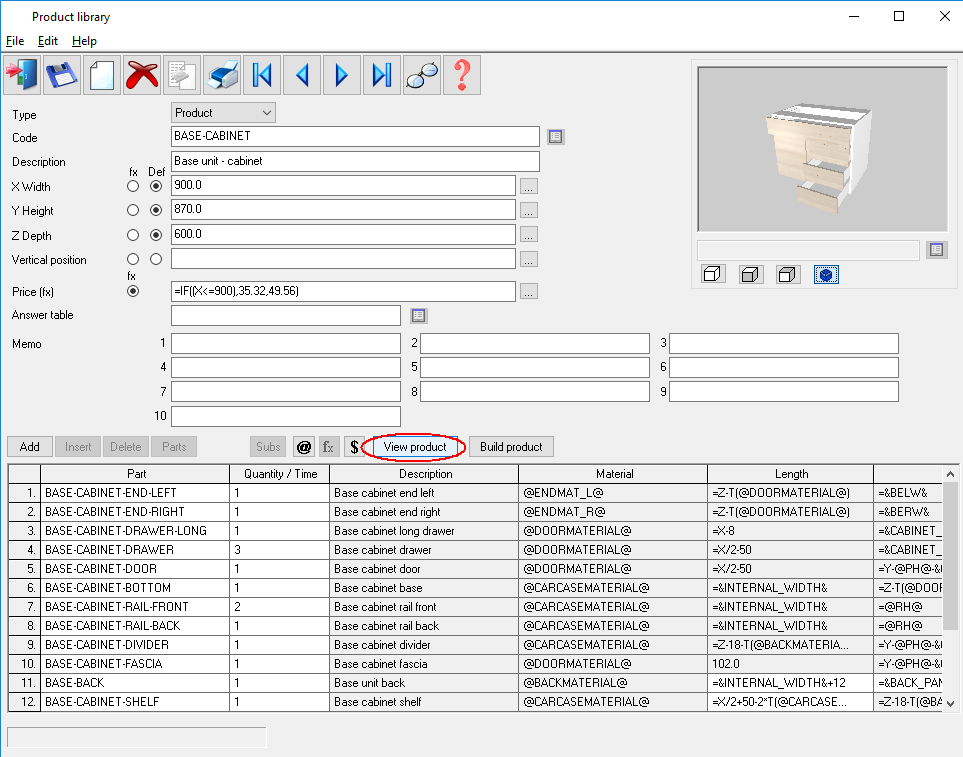

Products can be viewed in 3D from the product library by pressing the ‘View product’ button:

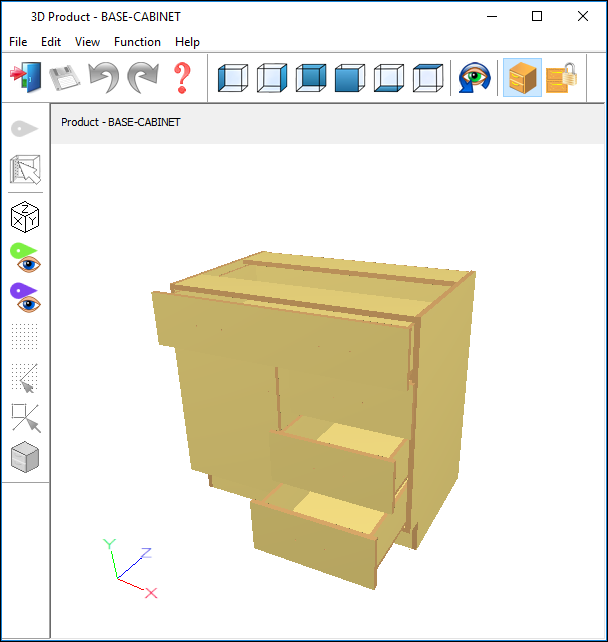

The 3D rendering of the product is then opened in the product viewer:

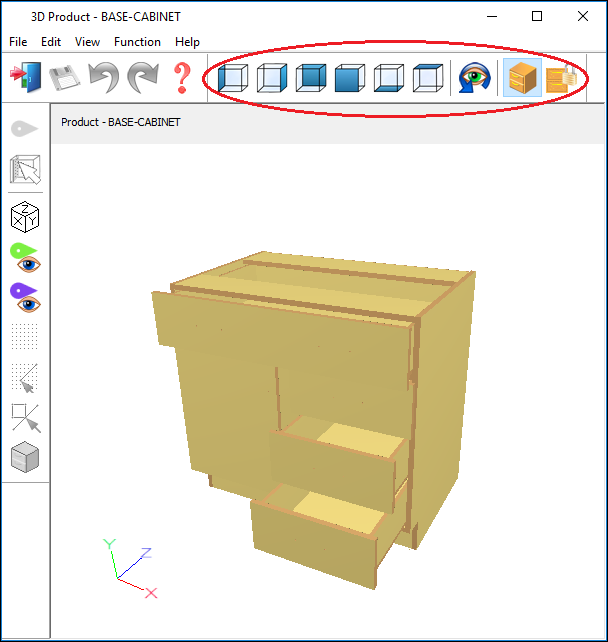

Within the product viewer orthogonal views of the product can be selected using the pre-set view buttons:

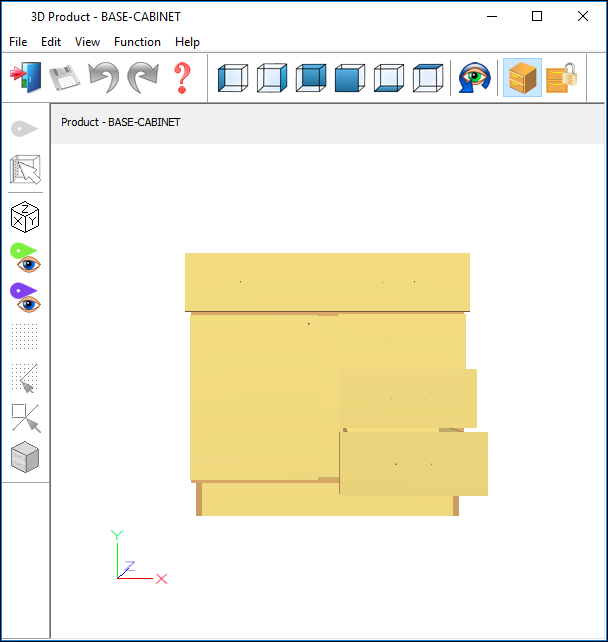

For example the front view:
In addition the product can be rotated around the X and Y axes by holding down the left mouse button with the mouse pointer within the drawing window and moving the mouse vertically or horizontally respectively.
The product can be moved horizontally and vertically in the view by holding down the right mouse button with the mouse pointer within the drawing window and moving the mouse horizontally or vertically respectively.
The product view can be zoomed in and out using the mouse wheel. Finally, the view can be reset by pressing the mouse wheel button.
