Connecting to link instruction in the 3D Product
When a connector is placed on an instruction in a link it inherits both the links position and dimensions and also the position of the instruction within the link. This is so that if the dimensions of the part change then the connector will remain in place on the instruction.
This is reflected in the values shown on the connector dialog for connectors placed on links. The links position and dimension is shown as well as the repeat index, direction and offset for repeated links. Changing the repeat index will moved the connector onto the new repeated instance of the link.

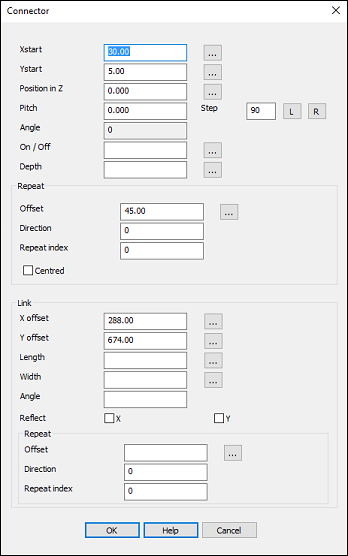

Connector dialog for connector placed on link
