Connections for 3D Product

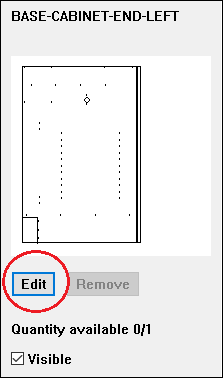

It is possible to view and edit connectors in the machine library if the parts drawing is opened from the part library or from pressing the edit button on the parts section in the right hand side part list view in the product viewer.
In the machine library connectors on the top or bottom of a part are referred to as ‘face’ connectors.
They are displayed as:
Connectors placed on the edge of a part are referred to as ‘edge’ connectors.
They are displayed as:
