Minimum requirements



Compare current system to Minimum specification for program



At the main screen:-



 Select: Minimum requirements

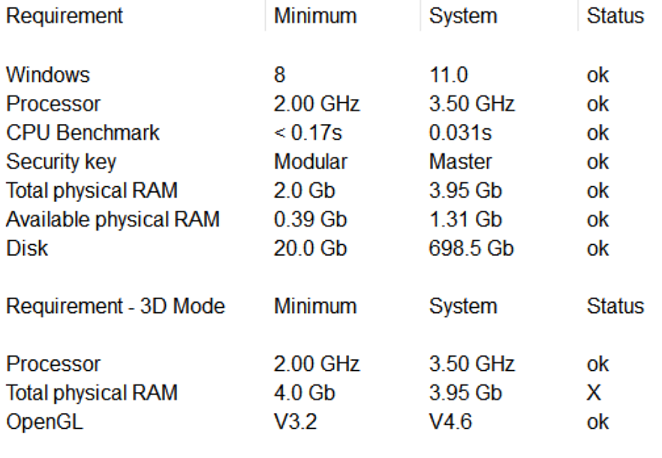

Screen displays a report comparing the current system against the specification required for the program to run.





ok - indicates system value is OK

X  - indicates that system value is not OK







The minimum hardware specification is:-



Processor speed 2.0Ghz

Memory 2Gb (400Mb free)

Hard disk 20GB free

Display 1440 x 900 or higher

USB port



The minimum hardware specification for 3D is:-



Processor speed 1.9Ghz

Memory 4Gb

OpenGL version 3.2



The supported operating systems are:-



Windows 8 (32bit and 64bit versions)

Windows 2012 Server x64 Editions

Windows 8.1 (32bit and 64bit versions)

Windows 2012 Server R2 x64 Editions

Windows 10 (32bit and 64bit versions)

Windows 2016/2019/2022/2025 Server x64 Editions

Windows 11



To support using the woodStore as the board database :-



Microsoft SQL server 2008 or later



Notes



- The program is a 32 bit application and there is NO speed advantage running under 64 bit editions of Windows.



- The program checks the system has at least 400Mb of free memory on starts up and does not run if there is less free memory than this (this is quite a low value for free memory). This is to avoid problems running with low memory. Free memory depends on the programs currently running and the operating system.
