MPR(X) part borders with no routing macro



Routing / Nesting system parameter to handle MPR(X) part borders without a routing macro






tickbox9.gif MPR(X) part borders with no routing macro

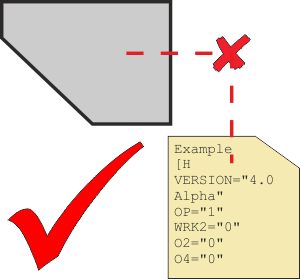

Select this parameter when MPR(X) parts contain border geometry but no matching macro.
