Nesting parameter to maintain layout of offcuts.
For non grained materials only
When a material is not grained the program by default labels any offcuts with the largest side as the length.

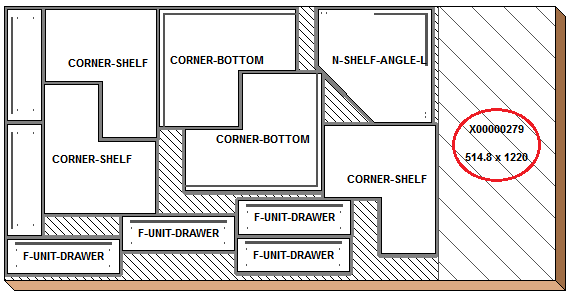

If this parameter is checked the program does not do this and labels the offcut with the dimensions as they appear in the pattern. For example, an offcut labelled on the pattern as 514.8 x 1220 remains in the board library (and offcut summary) as: 514.8 x 1220
Check
the box to maintain the original orientation for the offcut labels.
Notes
- Can also be set as a material parameter at both board and material level
- This parameter can be useful where external storage systems are used which rely on the offcut orientation not changing
