Merge lists



Merge lists together to create a combined list



At the Part list / Cutting list or Board list screen:-



 Select: Edit - Merge

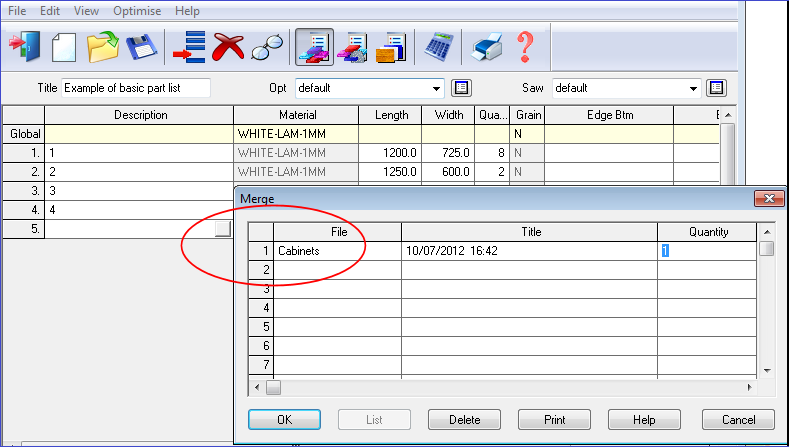

The program displays the Merge dialog (this example shows the Part list)





- Enter the part list file names to merge in and the overall quantity of the list.

or

- Select the List option to choose from a list of files



At the list dialog:-

select a file

Ctrl select multiple files



Drag the mouse to select a group of files. The files are added to the Merge dialog with a quantity of 1. Adjust the quantity as necessary. The quantity value multiplies the quantities in the incoming lists. For example, a value of 2 doubles the quantities in the resulting merged list.



 Select: OK to confirm



Other options



Delete - remove list from dialog

Print - print the list of files to merge

Help - information about this dialog

Cancel - abandon merge (no changes are made to the original list)





Notes



- Parts - if  information boxes are set for finished length and width the merge process does not update these boxes - finished length and width in the list to be merged are unchanged.



 - Merge is only available when the cursor is in the body of the list (not available at the Title or Parameter name boxes)
