Find - Part list



Option at the part list, cutting list, board list to search for specific text



For example, a part code, part quantity or material.



At the Part list or Board list screen:-



 Make sure the cursor is located in the main grid of data

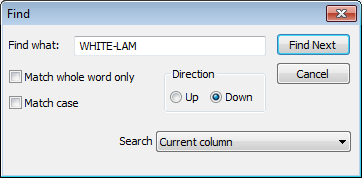

 Select: Edit - Find  <Ctrl F>

 Enter text to search for





To carry on with the search:-



 Select [ Find Next ] button



By default the search is for the current column - the options are:-



Current column

Current row

Whole list



Other options:-



Up / Down - choose the direction of the search

Match whole cell only - (e.g. does not look for 'White' in 'Whiteboard')

Match case - check box if the case in search text is significant



If the search is not successful the cursor stays in the current location.

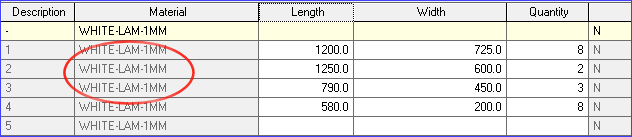

Global row



Where an item is set in the global row only the global row can be located. Greyed out rows cannot be searched.





The search only searches from the location of the cursor.



See: Replace
