Displays a grid of dashed lines over the drawing area.
At the drawing library:-
Select
tool from Function Toolbar
or
● Select: View - Grid

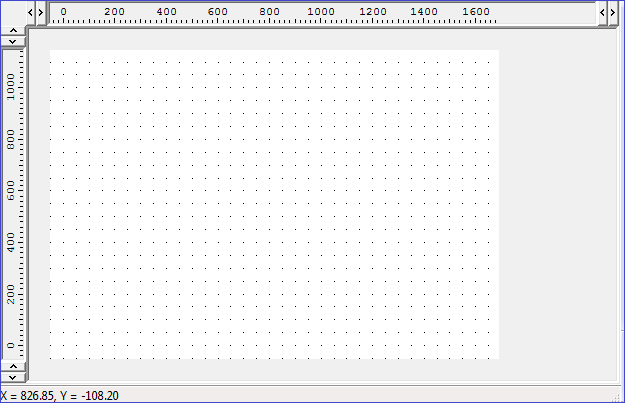

The grid can be helpful when aligning horizontal or vertical lines. There are three grid settings with different grid resolutions. Click on the Grid button to toggle between them. To switch off the grid click on the button until the grid lines are removed
To set the default grid properties for the Current drawing:-
● Select: File - Drawing Properties
To set the default grid properties for a New drawing:-
● Select: File - Default Properties
