Drawing instruction for a drawing
At any drawing:-
● Select: Tools - Text
or
Select option from Toolbar

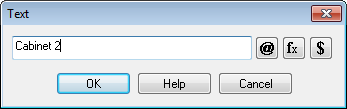

The program displays a dialog box
● Enter text
● Select OK to finish
Use
mouse to drag text to required location
● Click left mouse button to finish
The text is added to the drawing starting at the cursor location. Select and move text in the same way as other drawing objects.
@ fx $ - use these buttons to enter the text as a variable, formula or look-up item
Font - Use Properties to change the font
Edit options and Properties
- right
click with the mouse to show the menu of edit options and properties.
These vary for each type of drawing object. The property values can be
used to set start point, end point, length, thickness ... of each object
accurately.
