Edge codes - part library



Part library field

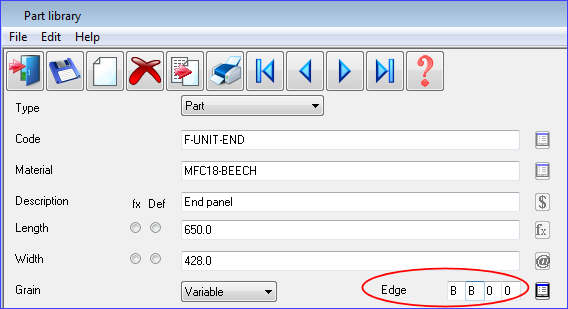

One method for describing edge material is use a single letter code (this is effective where there are only a limited number of different edging materials in use. The boxes at the Part library screen for Edges are for 'Quick edging'.





The order of the edges depends on the order of the Length and Width columns.



Use the List box next to the Edging boxes for a list of edging codes



If using the 'Edging information boxes' method for edging - do NOT use these boxes.
