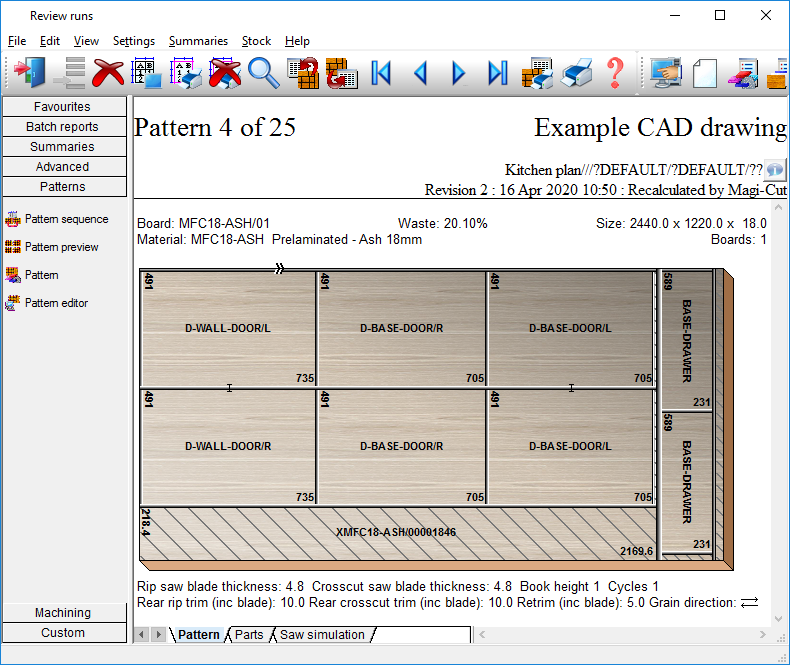

Full screen view of each pattern in a run
At the Review runs screen:-
● Select: Summaries - Patterns
or
Select
the Toolbar option (Patterns)
At the foot of the pattern are a series of tabs.
Click on a tab to see other information about the pattern.
Pattern - pattern drawing
Parts - list of cut part sizes and other details
Cutting instructions - cutting instructions (only for some types of saw)
Saw simulation - cutting times and simulation of saw
If the program is set to use an external saw simulator extra information is shown for cutting times.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the Toolbar
adjust on-screen column and
row width
zoom display in / out
print current report
Right click on a pattern to
pop up the properties dialog for the part or area selected
exit

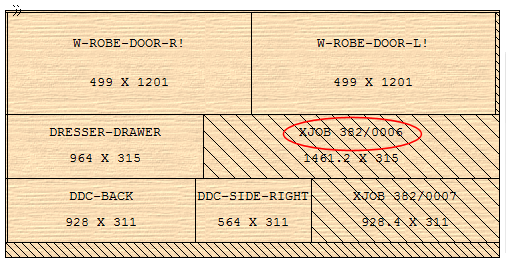

Offcut labels
Offcuts are labelled in the same way as parts.
(In the pattern editor the offcut areas are not labelled until the patterns are saved).
The data shown and the picture format can be changed in 'Settings - Report settings'
Notes
Grain direction
- The chevrons on the pattern edge indicate the Board orientation. They point along the direction of the size shown in the LENGTH column of the part list.
- The grain direction (if any) is shown by arrows at the foot of the pattern. These point in the grain direction.
Often the grain runs along the Length so that the board orientation and grain direction are the same but this is not always the case, especially for offcut sizes.
