Saw Buffer



Review current saw buffer



At the machine interface menu:-



 Select the Saw transfer method from the menu (e.g. CADmatic 3)

 Select: Transfer to saw

 Select: Saw buffer

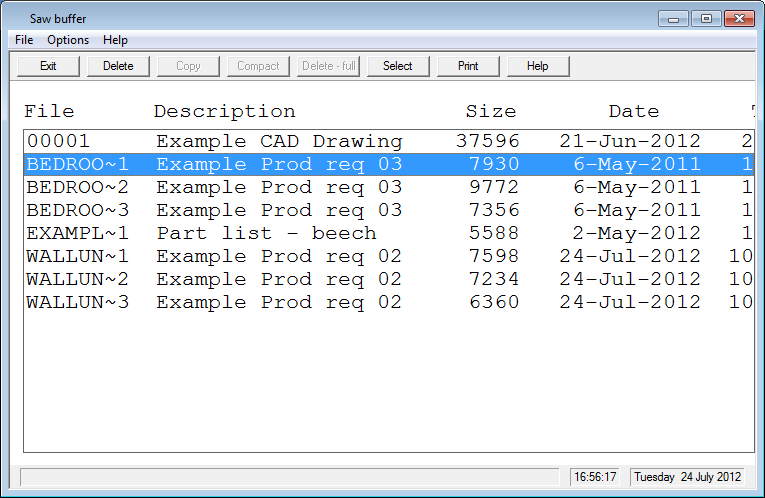

The screen displays a list of the files in the saw directory (buffer).





The information shown is:-



Filename

Description (if any)

File size (in bytes)

Date file created

Time file created



There is one line for each file. Use the normal paging keys to view a list of more than one page.



Other options



Help

Print

Delete - delete a file (Supervisor only)

Select



Select files with the mouse or place the cursor on the file and choose select



Saw buffer is also available as a Toolbar option - but note that if more than one saw interface is defined the Toolbar only relates to the first interface shown on the Machine interface menu.





Notes



- Saw buffer is only available when the Saw transfer parameter: Buffered for the relevant saw interface is checked.
