Transfer via Module



Send data to saw via module unit



The module is small portable memory 'card' for storing data. This transfer mode is typically used with the STG and Videomatic controllers. At the main screen:-



 Select: Machine Interface

 Select the menu option for the transfer

 Select Transfer to Saw

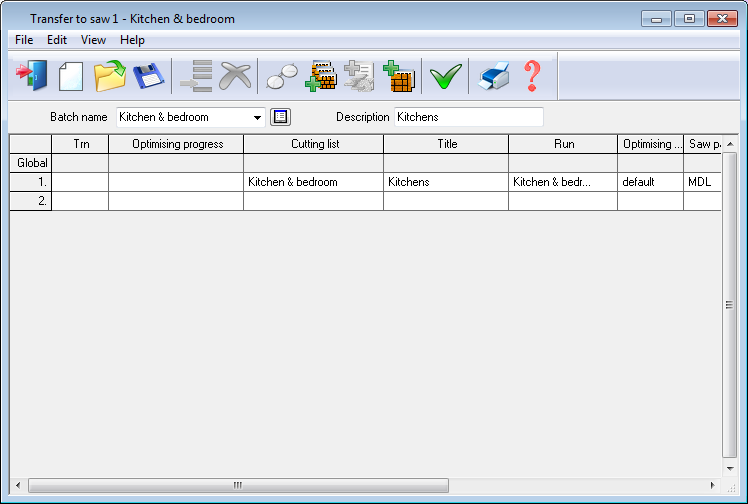

The program displays the batch screen showing the runs to be transferred





 Select OK to continue

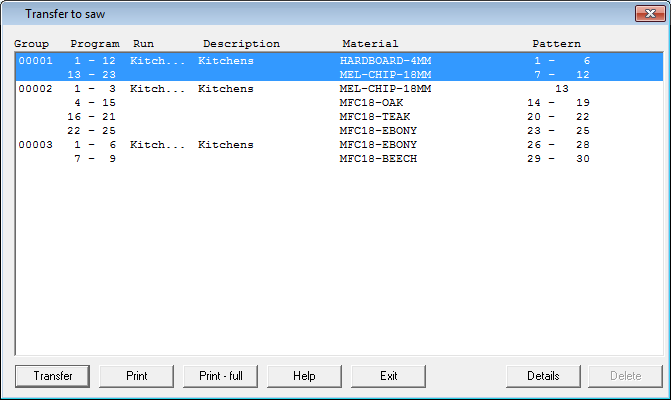

The details of the transfer are shown





There are options for printing the transfer details.



Each group consists of a block of cutting instructions.



Details - show the full details of each group



 To transfer items to the saw choose 'Transfer'.



The program prompts for the module options.





 Enter the number of the group to transfer



OK - send data



The data is sent to the module unit
