Boards used / required for a run
At the Review runs screen:-
● Select: Summaries - Machine loading
or
Select the Toolbar option (Advanced)

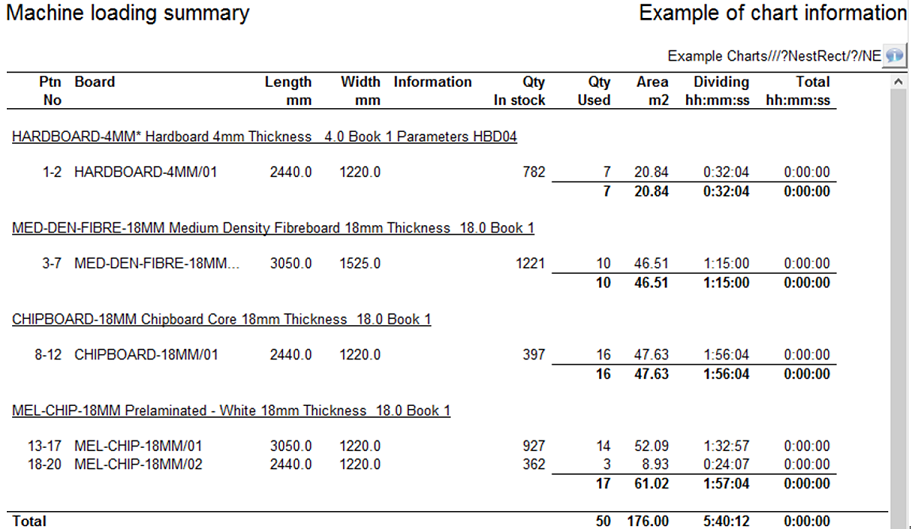

A summary to show the order in which boards are loaded if the cutting is done in the sequence of the cutting patterns.

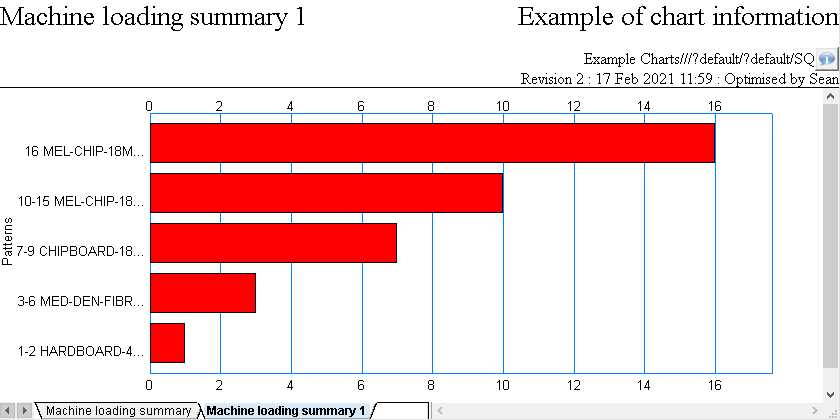

The tabs at the foot of the report can be used for custom graphs and charts, for example, the chart below is a visual representation of the summary above.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar. As well as the default fields shown the report can be modified by removing or adding extra fields (see 'Settings - Report settings). A list of available fields for the report are shown.
adjust on-screen column and
row width
zoom display in / out
print current report
exit
For full details of the on-screen options see help topic: Review runs screen
Notes
For a mixed material list the items are sorted by material. Each block of material is sub-totalled and the grand totals are shown at the bottom of the screen.
