Transfer to Schelling saws - Overview



Send data to Schelling saws



The program can be set up to transfer data to other proprietary saws.



Saw

Transfer mode

Schelling Commander 4

9

Schelling Commander 2

13



At the main screen:-



 Select: Machine Interface

 Select the transfer option required

 Select: Transfer to saw

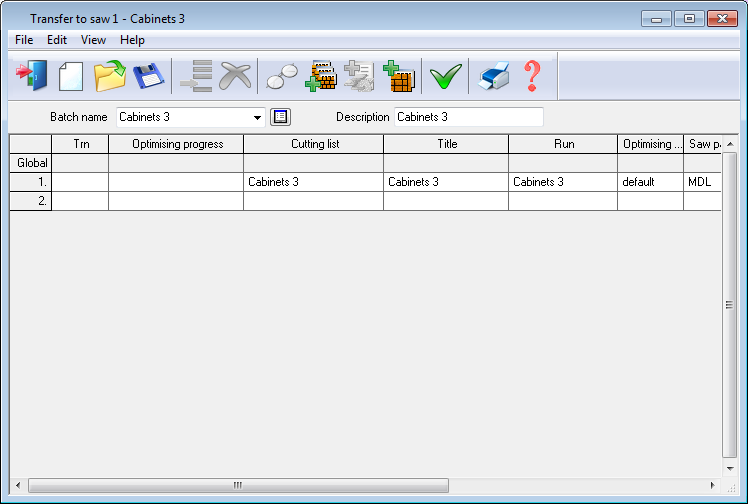

The program displays the batch screen showing the runs to be transferred





Select the 'continue' marker

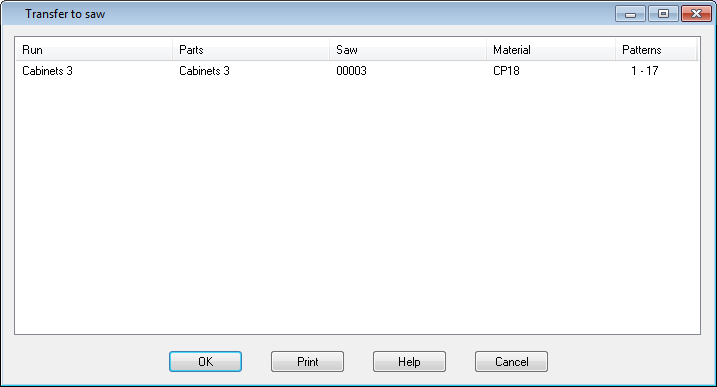

The program shows the specific details for each transfer and goes through the options required. This can vary for different types of saw controller.





 Select OK to confirm transfer



Other options



Print - hard copy of list

Help - information about this dialog

Cancel - abandon transfer





Notes



Saw model number - set to: 51



Transfer process - When 'Transfer to saw' is selected data files in a Schelling format are created and stored in the 'Path for saw data'. There are different formats for Commander 4 and Commander 2. Usually the Schelling software loads the files directly from the 'Path for Saw data' so there is no need to specify a Program name in the Saw transfer parameters.



Label printing - for Homag saws (models 33 and 34) you must set the Saw parameter 'Create data for labels' so that the data for label printing is created. You can also use the Label design option to design a label and transfer the design to the saw.



Setup - this is different for each type of Schelling saw
