Transfer cutting data to SCM saws
The program can be set up to transfer data to other proprietary saws.
Saw |
Transfer mode |
SCM with Master-S |
10 |
SCM Seziona |
15 |
At the main screen:-
● Select: Machine Interface
● Select the transfer option required
● Select: Transfer to saw

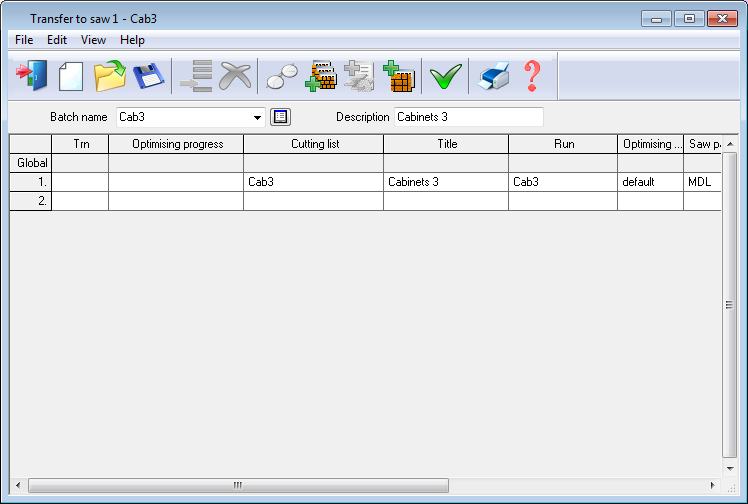

The program displays the batch screen showing the runs to be transferred
Select the 'continue' marker
The program shows the specific details for each transfer and goes through the options required. This can vary for different types of saw controller.
● Select OK to confirm transfer
Other options
Print - hard copy of list
Help - information about this dialog
Cancel - abandon transfer
