Run summary - Online label PC



This is a list of all runs in the Online Label PC directory at the Saw PC

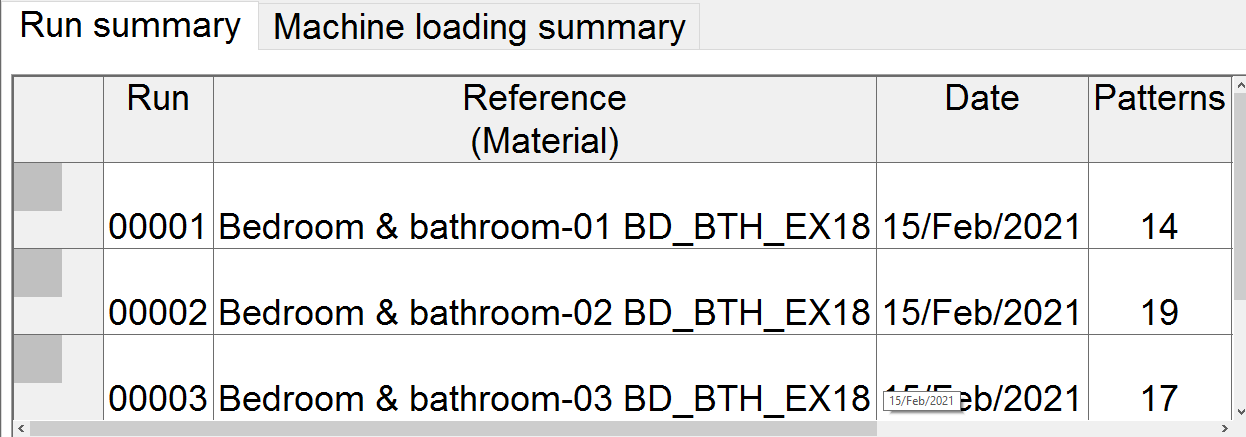

The screen shows one line of information for each run.





 Click on a run to move to the Pattern summary



Use the tabs and navigation buttons to move around the screens.

Use the arrow keys to move up and down the list of runs.

Transfer data to Saw

Run is marked as done

Delete run (select run first)



Other options



Exit

Print

Help

Properties





Notes



- Alphanumeric runs with Online label PC and Compumatic - The Compumatic saw controller can only request 5 digit run numbers. Therefore when alphanumeric runs are transferred to the Online Label PC under transfer mode 2, these runs will be automatically assigned a numeric run number.



- Font point sizes are selected to ensure that all controls are visible at different resolutions (particularly on wide screen monitors).



- Arial font is used to improve text appearance at higher point sizes.

- A vertical scroll bar appears on grids where there is more than one screen of information.

- Cannot view a run which is marked as complete (ticked)

- Cannot delete a run which is not marked as complete.
