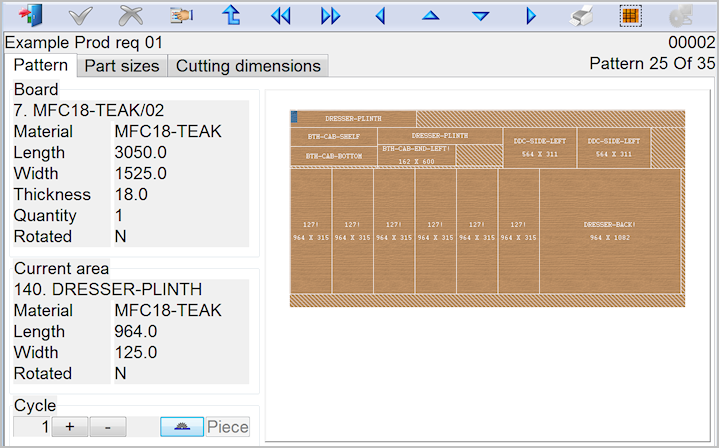

Pattern display (Online label PC)



Details for one pattern  (Saw PC)





 Select any part by pointing to it or clicking on it



CUT (F9) - next cut

PIECE (F10) - next piece (manual cutting)

SELECT ALL - select all labels for a sheet

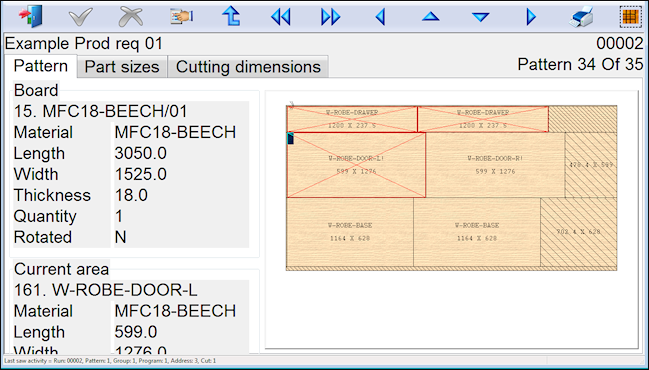

Print a label for the part selected. When the label is printed the part is marked with a cross. At the foot of the screen is the CYCLE button - use this to move between the different cycles in a pattern where there is more than one cycle.



The pattern shows the cuts (F9) via a flashing line and any labels that are already printed are marked with a red cross.





Use the tabs and navigation buttons to move around the screens.

Use the arrow keys to move up and down the list of runs.

Back - move to previous screen



Select all



Other options



Exit

Print

Help

Properties
