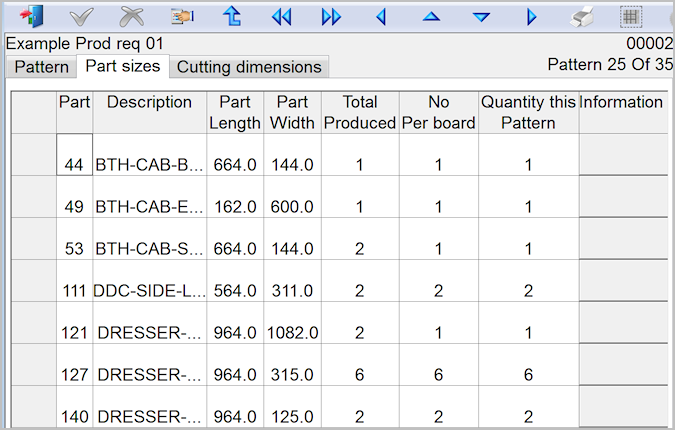

Part sizes (Online label PC)



Shows the details of each part on the pattern (Saw PC)



 Click on the tab for the summary





Includes the total number produced by, parts per board and total number of parts produced by the current pattern.



- Select the 'Information boxes' column to view the information boxes for a part



Use the tabs and navigation buttons to move around the screens.

Use the arrow keys to move up and down the list of runs.

Back - move to previous screen



Other options



Exit

Print

Help

Properties
