Destacking parameter to set the destacking method
This parameter is used to set the Destacking style. Whilst it can be used to set an overall destacking style for all parts it is more typically used to point to an information box (which has a value for each part individually) to say how the part is destacked (yypically this is a code from the Destacking library PLT/1, BSB-03 ...).

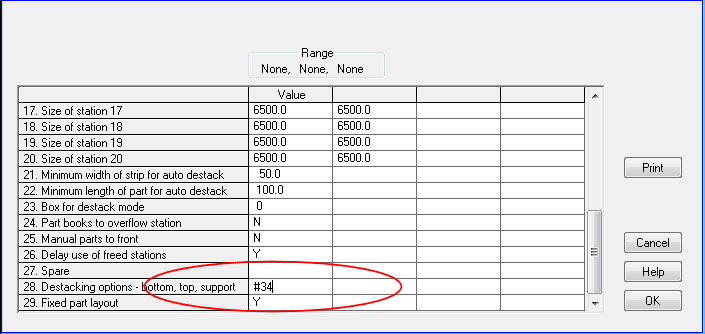

There are three styles that can be set - bottom, top and support styles (columns 1 to 3). If using the Destacking library the 'Top' and 'Support' styles are specified in the library so only the 'Bottom' option (first column) needs to be set. When destacking without using the Destacking library the 'Top' and 'Support' boxes can be set as well.
- Enter the destacking style or method
Pallet or baseboard style code (8 characters, e.g.: PLT/1) or Number of the information box for pallet or baseboard style as (#number).
