Single strip patterns



Optimising parameter to set how cuts are shown for patterns with one strip

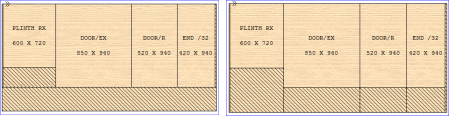

If patterns are of single strips but not all the parts are the full width of the strip there are two ways in which the pattern can be displayed.



Rip first then crosscut

Crosscut first then recut



 Select the option required



Where the option 'Crosscut first then recut' is set the Rip trims must also be set to zero to prevent any rip trims.



To force crosscut only patterns also consider the optimising parameter: Create Crosscut only patterns





Notes



- Can also be set as a Material parameter at material level.



- If the waste areas include valid offcuts this may also prevent the 'crosscut first' operation.
