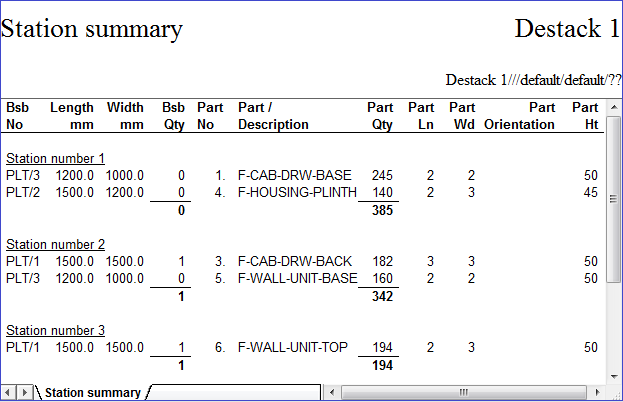

Report showing how stations are loaded for off-stacking
Where the Destacking module is used there are extra reports for the destack information. At the Review runs screen:-
● Select: Summaries - Station
or
Select the Toolbar option
A full description of the parts at each station as the parts are cut. It is a list of all the stations and the parts destacked at each station in the order in which they are destacked.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar
Navigation
Adjust on-screen column and
row width
Zoom display in / out
Print current report
exit
For full details of the on-screen options see help topic: Review runs screen
Report Content
The report shows the following information
Baseboards/Pallets
Code - code for destacking style
Length/Width - baseboard or pallet length and width
Qty - quantity of baseboards or pallets used
Parts
Code - part code
Qty - part quantity
Ln/Wd - number of parts in length and width
Ht - height of stack (number or pieces
